FINANCING AVAILABLE
Overview

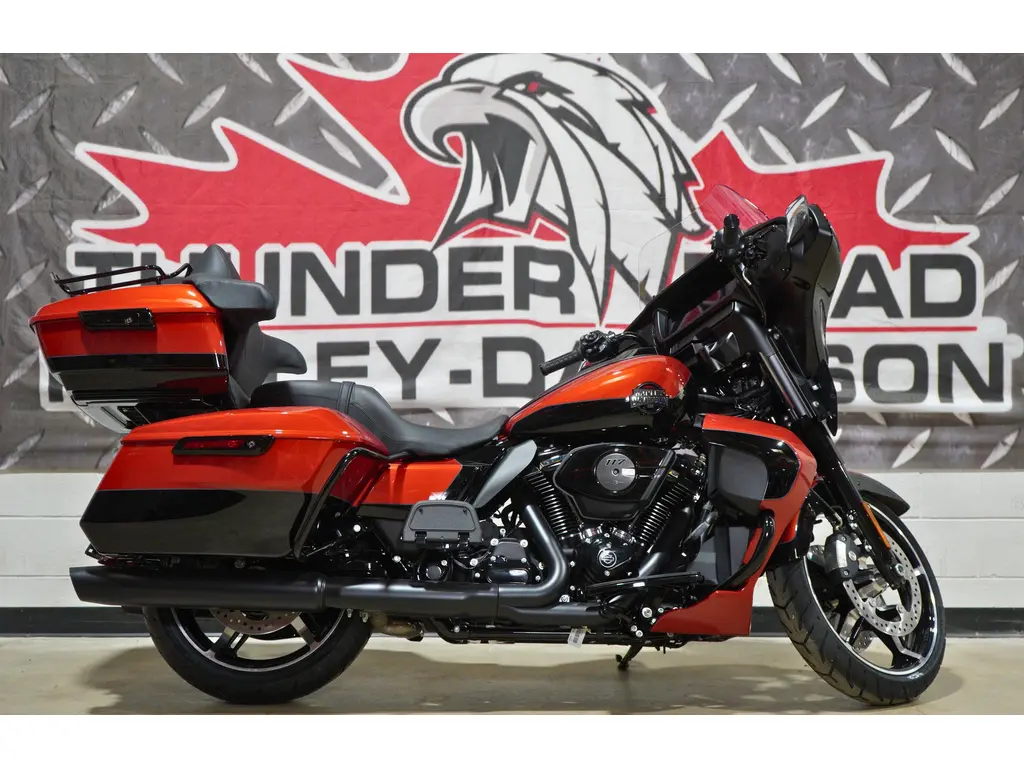

- Condition: New vehicle
- Manufacturer: Harley-Davidson
- Model: FLHXU
- Version: STREET GLIDE ULTRA
- Year: 2025
- Stock #: 606196
- Type: Touring
- Exterior colour: Whiskey Fire/Vivid Black
Specifications
- Length: 2,590 mm (102 in.)
- Overall Width: 980 mm (38.6 in.)
- Overall Height: 1,450 mm (57.1 in.)
- Seat Height, Laden: N/A
- Seat Height, Laden (Low seat position):
- Seat Height, Laden (High seat position):
- Seat Height, Laden (Low seat position with optional ARH suspension):
- Seat Height, Laden (High seat position with optional ARH suspension):
- Seat Height, Unladen: 725 mm (28.5 in.)
- Seat Height, Unladen (Low seat position):
- Seat Height, Unladen (High seat position):
- Seat Height, Unladen (Low seat position with optional ARH suspension):
- Seat Height, Unladen (High seat position with optional ARH suspension):
- Static Ground Clearance: 135 mm (5.3 in.)
- Dynamic Ground Clearance (with optional suspension):
- Rake (steering head) (deg): 26
- Fork Angle (deg): 29.25
- Trail: 170 mm (6.7 in.)
- Wheelbase: 1,625 mm (64 in.)
- Tires, Type: Dunlop® Harley-Davidson Series, bias blackwall front and rear
- Tires, Front Model: D408F
- Tires, Front Specification: 130/60B19 M/C 61H
- Tires, Rear Model: D407T
- Tires, Rear Specification: 180/55B18 M/C 80H
- Fuel Capacity: 22.7 l (6 gal.)
- Reserve Fuel Capacity, Fuel Injection (warning light) (X.X gal) (X.X l): 3.8 l (1 gal.)
- Oil Capacity (w/filter): 4.7 l (5 qt.)
- Transmission Capacity: .95 l (1 qt.)
- Primary Chain Case Capacit: 1 l (1.1 qts.)
- Coolant Capacity: 0.78 l (0.82 qt.)
- Weight, As Shipped: 377 kg (831 lb.)
- Weight, In Running Order: 393 kg (866 lb.)
- Gross Vehicle Weight Rating: 617 kg (1,360 lb.)
- Gross Axle Weight Rating, Front: 227 kg (500 lb.)
- Gross Axle Weight Rating, Rear: 420 kg (927 lb.)
- Luggage Capacity -Volume: 0.139 m3 (4.9 cu ft)
- Engine: Milwaukee-Eight® 117
- Valves: Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; four valves per cylinder
- Bore: 103.5 mm (4.075 in.)
- Stroke: 114.3 mm (4.5 in.)
- Displacement: 1,923 cc (117 cu in)
- Compression Ratio: 10.3:1
- Fuel System: Electronic Sequential Port Fuel Injection (ESPFI)
- Air Cleaner: Fiberglass, washable
- Exhaust: 2-1-2 dual exhaust with tapered mufflers
- Lubrication System: Pressurized, dry-sump
- Primary Drive: Chain, 34/46 ratio
- Final Drive: Belt, 32/68 ratio
- Clutch: Mechanically actuated 10 plate wet, Assist and Slip
- Transmission: 6-Speed Cruise Drive®
- Gear Ratios (overall) 1st: 9.593
- Gear Ratios (overall) 2nd: 6.65
- Gear Ratios (overall) 3rd: 4.938
- Gear Ratios (overall) 4th: 4
- Gear Ratios (overall) 5th: 3.407
- Gear Ratios (overall) 6th: 2.875
- Frame: Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin down-tubes; bolt-on rear frame with forged fender supports; MIG welded.
- Swingarm: Mild steel; two-piece drawn and welded section; forged junctions; MIG welded.
- Front Fork: 49mm (1.9 in.) Dual Bending Valve
- Front Fork, Optional:
- Rear Shocks: 76.2 mm (3 in.) Dual Outboard Emulsion with Preload Adjustability
- Rear Shocks, Optional:
- Wheels, Optional Style Type: N/A
- Wheels, Front Type: Cast aluminum
- Wheels, Front Diameter: 19 in. (483 mm)
- Wheels, Front Width: 3.5 in. (89 mm)
- Wheels, Rear Type: Cast aluminum
- Wheels, Rear Diameter: 18 in. (457 mm)
- Wheels, Rear Width: 5 in. (127 mm)
- Brakes, Caliper Type: 32 mm (1.3 in.), 4-piston fixed dual axially mounted front, and single axially mounted rear
- Brakes, Rotor Type: Dual floating rotors (front), fixed rotor (rear)
- Brakes, Front Diameter: 320 mm (12.6 in.)
- Brakes, Front Thickness: 4.5 mm (0.18 in.)
- Brakes, Front is dual: Yes
- Brakes, Rear Diameter: 300 mm (11.8 in.)
- Brakes, Rear Thickness: 7 mm (0.28 in.)
- Brakes, Anti-Lock Braking System (ABS): Standard
- Suspension Travel, Front: 117 mm (4.6 in.)
- Suspension Travel, Rear: 76 mm (3 in.)
- Engine Torque Testing Method: J1349
- Engine Torque: 176 Nm (130 ft-lb)
- Engine Torque (rpm): 3,250
- Power (Hp/kW): 105 HP / 78 kW @ 4600 rpm
- Lean Angle Testing Method: SAE J1168
- Lean Angle, Right (deg.): 31
- Lean Angle, Left (deg.): 31
- Fuel Economy Testing Method: Estimated City/Hwy
- Fuel Economy: 5.3 l/100 km (44 mpg)
- CO2 Emissions Testing Method: N/A
- CO2 Emissions: N/A
- Stationary Noise (BRZ only): N/A
- Infotainment system: Skyline™ OS
- Screen Size: 12.3 in (312 mm)
- Type: Full Color TFT
- Watts Per Channel: 50
- Speakers: 2
- Speaker Size: Two 5.25 in. (133 mm) fairing speakers
- Headset Specifications (if equipped): N/A
- AM: Standard
- FM: Standard
- MW: N/A
- LW: N/A
- Weather Band (WB): N/A
- SD Card, Flash Drive and MP3 - via USB Connection: Supported
- Languages: Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese (Brazil/Portugal), Romanian, Russian, Siamese (Thai), Slovak, Spanish (Mexico/Spain), Swedish, Tagalog, Turkish, Vietnamese
- Hands-free Mobile Phone - via Bluetooth: Standard
- Voice Recognition Languages: Phone functions only: Phone dependent
- Voice Recognition Languages: Tuner/Media/Navigation: Danish, English (UK/USA default), French (Canada/France), German, Italian, Spanish (Mexico/Spain)
- Rider/Passenger Intercom: Standard (passenger headset sold separately), VOX is available for H-D headsets
- Vehicle Information Screen (Air temperature, oil pressure and EITMS): Standard
- Text-to-Speech (TTS) Languages: Same as Languages list
- USB: USB-C/MTP/Smartphone will work with any phone which has proper adapters to the connection located in the inner fairing storage
- Phone Connectivity: Apple CarPlay (wireless or wired)
- Bluetooth: Phone/Media Player, Headset
- Navigation - via Bluetooth:
Notes
Notes:
Ride father, get closer. The Street Glide Ultra is made for two-up touring, with a powerful V-twin engine, spacious storage, and modern amenities refined over decades of cross-country riding.
MILWAUKEE-EIGHT® 117 V-TWIN ENGINE
Giving you more torque and horsepower than the Twin-Cooled 114, the Milwaukee-Eight® 117 has liquid-cooled cylinder heads and a centrally located radiator that sends air directly into the intake for quicker cooling.
REAR SHOCKS
With three inches of travel, SHOWA® dual outboard emulsion technology shocks provide a responsive and consistent ride. Remote hydraulic preload adjustments are made quickly and easily by hand.
FAIRING LOWERS
New fairing lowers with adjustable air vents coupled with fork-mounted air deflectors provide improved aerodynamic comfort while complementing the Touring redesign.
FORK-MOUNTED AIR DEFLECTORS
Fork-mounted air deflectors are larger than those on standard Street Glide models and are adjustable to deflect wind away from the rider when desired or open to increase airflow to the rider’s torso.
FAIRING + TALL WINDSHIELD
The iconic Batwing fairing has been designed and sculpted using computational fluid dynamics (CFD), wind-tunnel testing, and time on the road to improve comfort and reduce buffeting. New clear windshield is four inches taller than standard Street Glide models and reduces helmet buffeting by up to 60 percent.
TWO-UP COMFORT SEAT
Designed for all-day, two-up riding, the new seat ergonomically rotates the rider’s hips forward to relieve spine pressure.
STORAGE
King Tour-Pak® luggage carrier comes standard and has a robust passenger back pad with armrests. The hard-shell luggage carrier, fairing cubbies, and large saddlebags offer 4.9 cubic feet of combined storage—more than twice that on a standard Street Glide.
TANK MEDALLION
New fuel tank medallion comes in chrome or black to match your bike’s trim, and unique console inserts proudly show the Street Glide Ultra name.
SADDELBAG GUARDS
Finished to match your Street Glide Ultra, saddlebag guards protect your bodywork in case of a tip-over.
FAIRING SKIRT
Optimized to work with fairing lowers, the fairing skirt improves wind management and visual flow
INNOVATION
A classic silhouette boasts a host of modern tech and innovation, from comfort features to Rider Safety Enhancements that help keep you out on the road longer.
12.3-INCH TFT DISPLAY
Our most advanced display, the crystal-clear, 12.3-Inch touchscreen color TFT with Skyline™ OS lets you easily access infotainment, navigation, switch between the bike’s four ride modes, and more.
NAVIGATION
Hands-free Voice Recognition System makes built-in navigation easier to use, with simple conversational commands like, “Find me a gas station.”
VEHICLE HOLD CONTROL
When stopped on an incline or a decline, squeeze and release the front brake lever to activate Vehicle Hold Control and keep the Street Glide Ultra from rolling.
Warranty:
1 - 5 yrs Harley Davidson Extended Service Plan Available For Purchase
